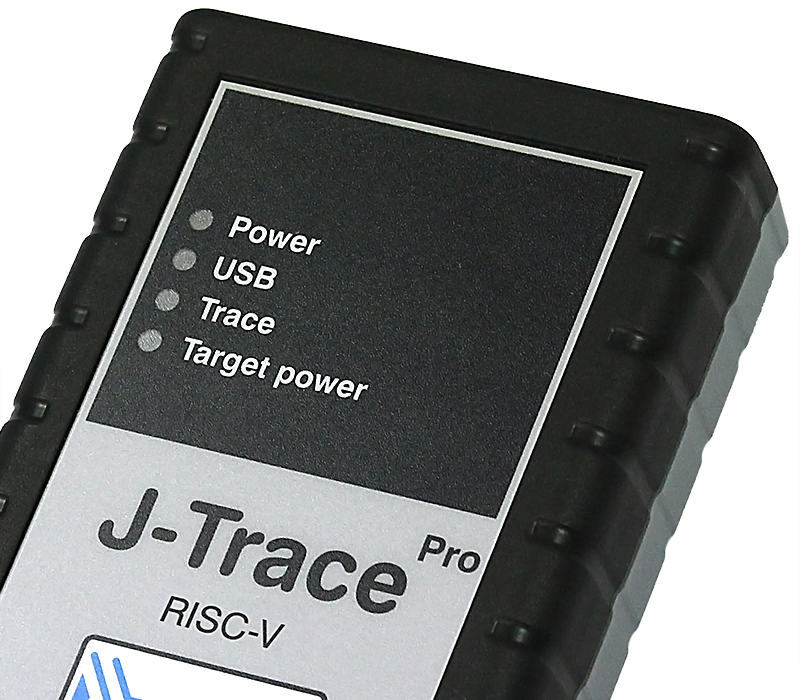

J-Trace PRO RISC-V

About this product

Get the J-Trace PRO RISC-V, the superspeed trace probe that provides support for RISC-V-based microcontrollers.

With its superspeed USB 3.0 interface, J-Trace PRO RISC-V enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.
With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state.

SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer.

Up to 4.0 MB/s download speed

Includes:

• J-Flash / J-Flash SPI

• J-Link Unlimited Flash Breakpoints

• Ozone - The J-Link Debugger

• Monitor mode

Further advantages
It also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified).

Package content

• J-Trace PRO trace probe
• .05" 20-pin debug & trace cable
• .1" 20-pin ribbon cable (18 cm)
• USB 3.0 cable

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.
