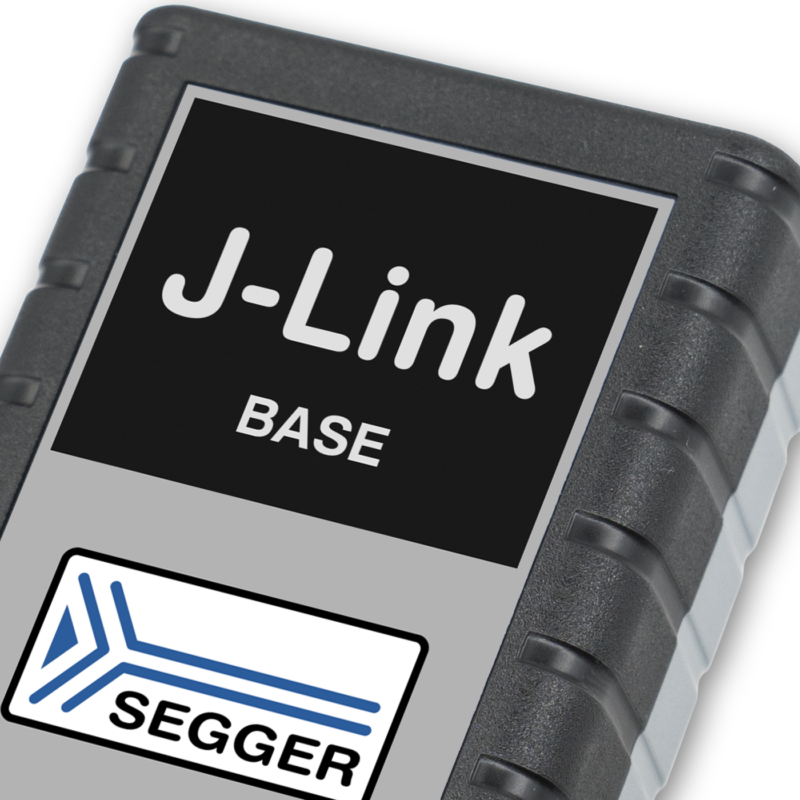

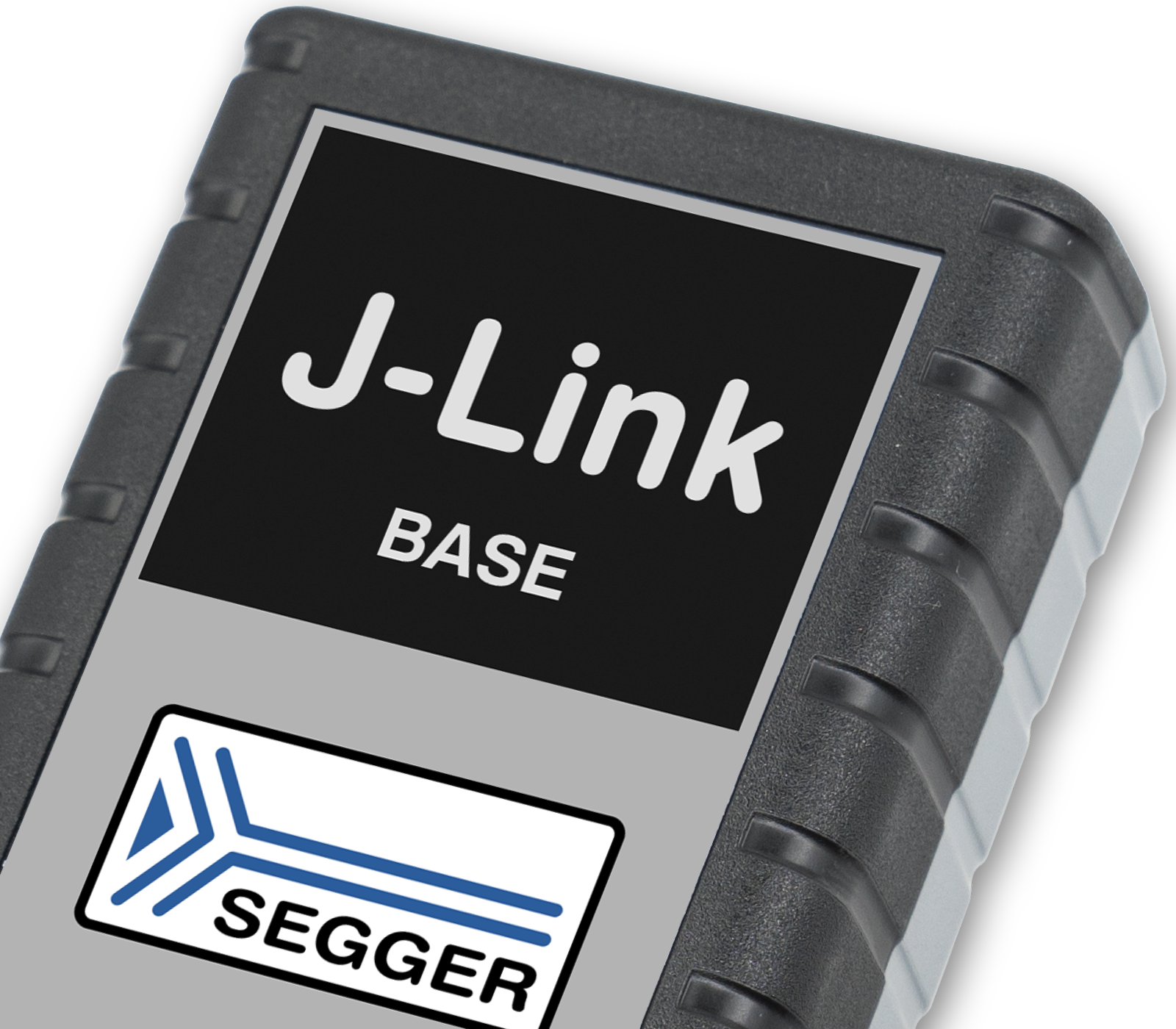

J-Link BASE Classic
About this product
Get the J-Link BASE – the BASE version of the market leading J-Link debug probe family. The top models of the J-Link family are J-Link Pro PoE, J-Link Pro, Ultra & PLUS.
The J-Link Base is designed for developers who want to get started with J-Link and basic debug functionality. The probe supports a wide range of CPU cores and microcontrollers and offers reliable performance for standard development tasks. However, compared to other J-Link models, the J-Link BASE includes only a limited set of advanced software features.
J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.
Further advantages
J-Link BASE has built-in VCOM functionality. It is also available in a compact version: the J-Link BASE Compact.
Including all models, more than 500,000 J-Links have been shipped so far, making J-Link probably the most popular debug probe for ARM cores and the de-facto standard.
Package content
-
J-Link Base debug probe
-
USB cable
-
.1" 20-pin ribbon cable (18 cm)
Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.
For additional product information, please visit segger.com.
| Model | J-Link BASE Classic |
| Order number | SEGGER_8.08.00 |
| Support options | Basic (12 months), Extended Coverage (+12 months), Extended Coverage (+24 months) |
| Supported targets | ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051 |
| Host interface | USB |
| Interface speed | Standard (1 MB/s) |
| Trace interface | ETB Trace |
| Software features | Flash Download, GDB Server, Real-Time Transfer (RTT) |
| Target Interface | cJTAG, FINE, ICSP, JTAG, SWD, SWO |
