J-Link WiFi

SKU: SEGGER_8.14.28

excl. VAT

€ 1.304,38 incl. 21% VAT

In stock — Ships within 2-5 business days

Support options

Authorized Segger Partner

EU-wide shipping

VAT reverse charge for EU businesses

Expert technical support

About this product

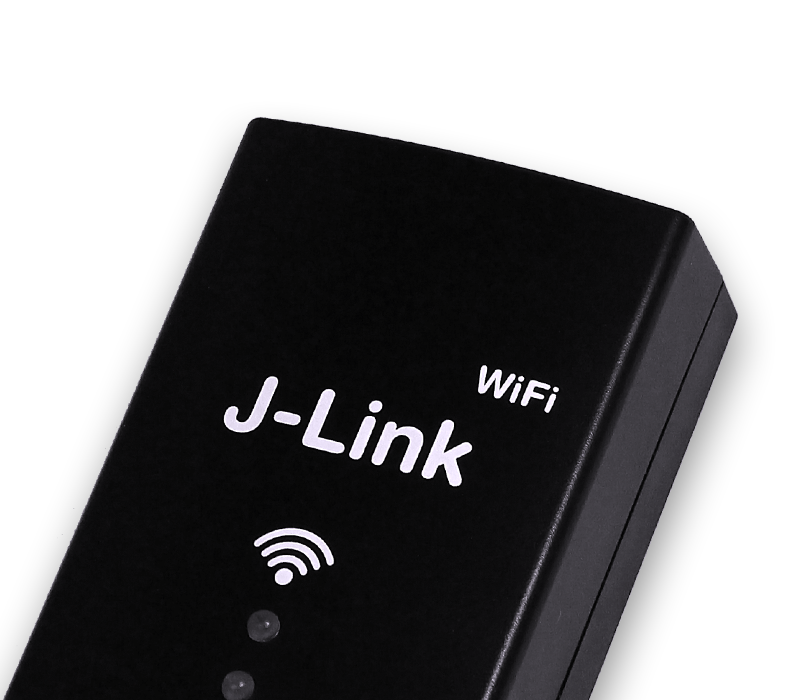

Get the J-Link WiFi, a debug probe with WiFi interface.

Communicates at high speed (up to 15MHz) with supported target CPUs. Need a wireless debug interface? Then J-Link WiFi is the perfect solution – for example if the target is moving or needs to be shielded from the environment. Powered by USB, it can easily connect to the same source of power as the target device.

J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.

With over 500,000 J-Link shipped so far, it is probably the most popular debug probe for ARM cores and the de-facto standard.

Further advantages

J-Link WiFi includes a web interface making for easy TCP/IP configuration (built-in webserver). There are also integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It additionally provides J-Link debugging for mobile applications as well as built-in VCOM functionality, supporting a broad range of microcontrollers & CPUs.

Package content

J-Link WiFi debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Model	J-Link WiFi
Order number	SEGGER_8.14.28
Support options	Basic (12 months), Extended Coverage (+12 months), Extended Coverage (+24 months)
Supported targets	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051
Host interface	USB, WiFi
Interface speed	Standard (1 MB/s)
Trace interface	ETB Trace
Software features	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Target Interface	cJTAG, FINE, ICSP, JTAG, SWD, SWO
