J-Link Pro

SKU: SEGGER_8.12.00

excl. VAT

€ 1.304,38 incl. 21% VAT

In stock — Ships within 2-5 business days

Support options

Authorized Segger Partner

EU-wide shipping

VAT reverse charge for EU businesses

Expert technical support

About this product

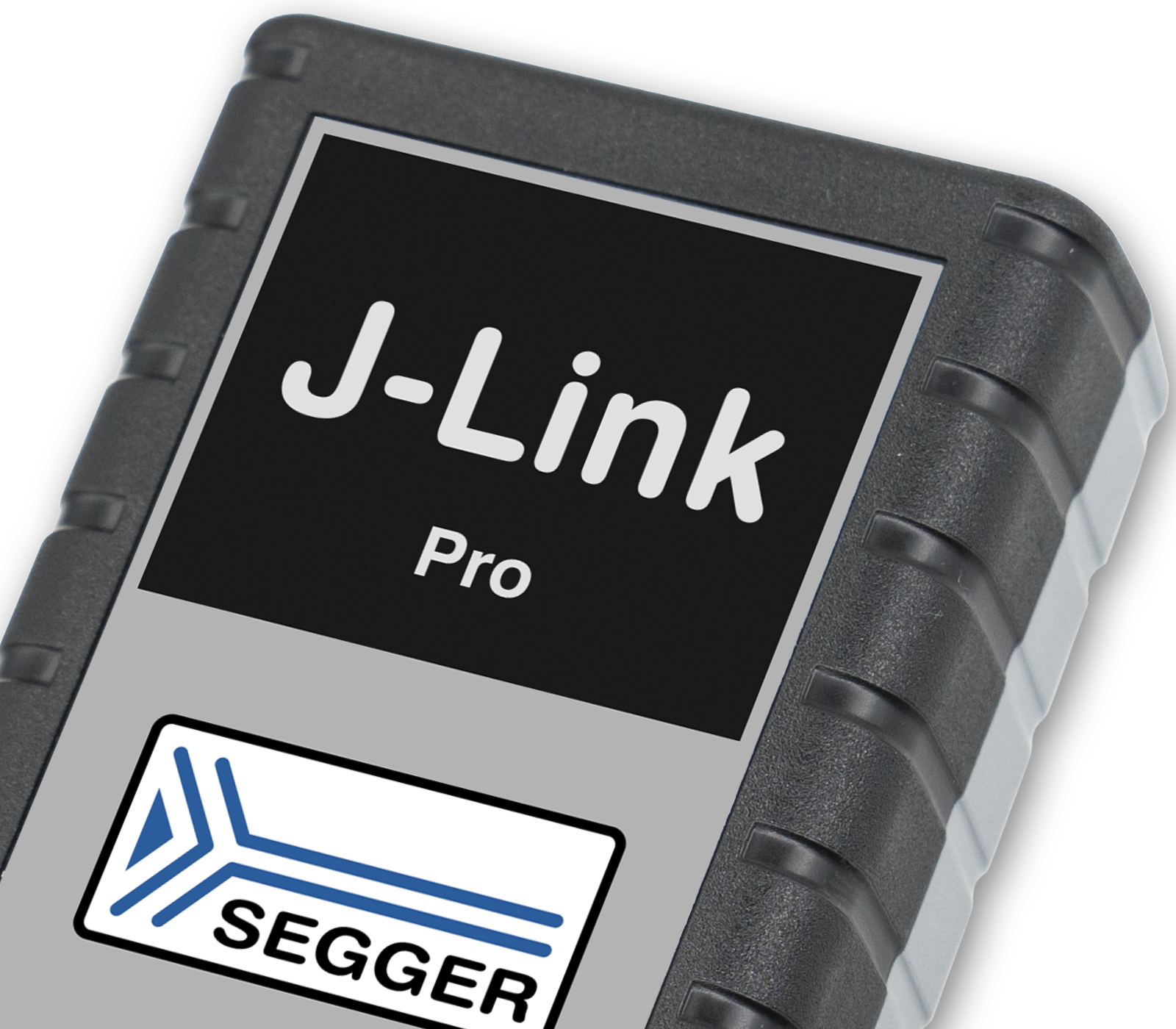

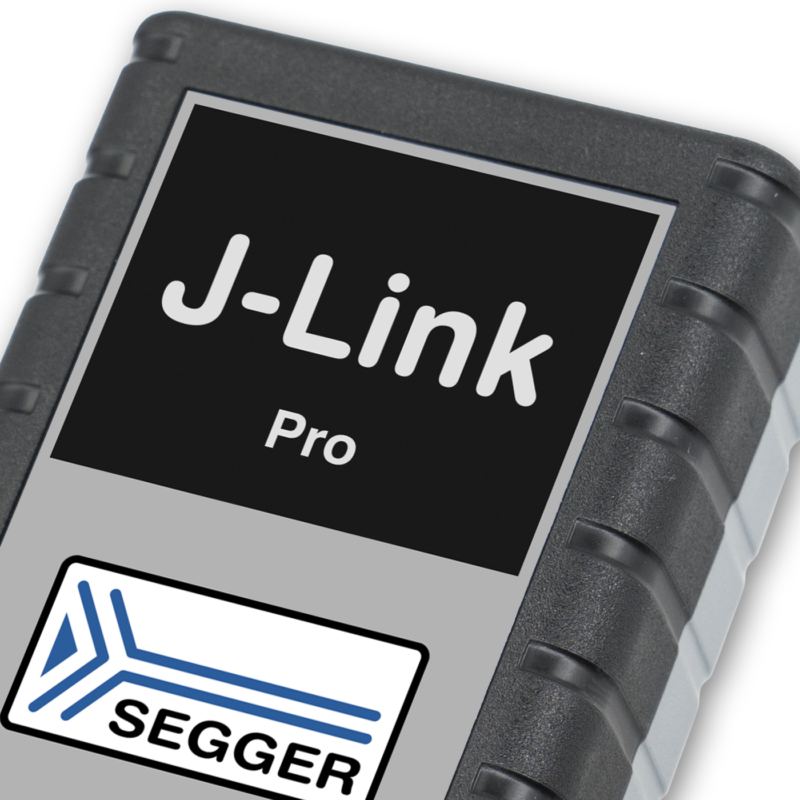

Get the J-Link Pro, an ultra fast debug probe using Ethernet for communication with the development system.

Working “out-of-the-box”, it uses DHCP per default. The debug probe can be used far away from the development system, either over a hardwired or wireless network. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux & macOS.

Further advantages
J-Link Pro includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers.

J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.

Package content

J-Link Pro debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Model	J-Link Pro
Order number	SEGGER_8.12.00
Support options	Basic (12 months), Extended Coverage (+12 months), Extended Coverage (+24 months)
Supported targets	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051
Host interface	Ethernet, USB
Interface speed	High (4 MB/s)
Trace interface	ETB Trace
Software features	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Target Interface	cJTAG, FINE, ICSP, JTAG, SWD, SWO
