J-Link Pro PoE

SKU: SEGGER_8.12.28

excl. VAT

€ 1.570,58 incl. 21% VAT

In stock — Ships within 2-5 business days

Support options

Authorized Segger Partner

EU-wide shipping

VAT reverse charge for EU businesses

Expert technical support

About this product

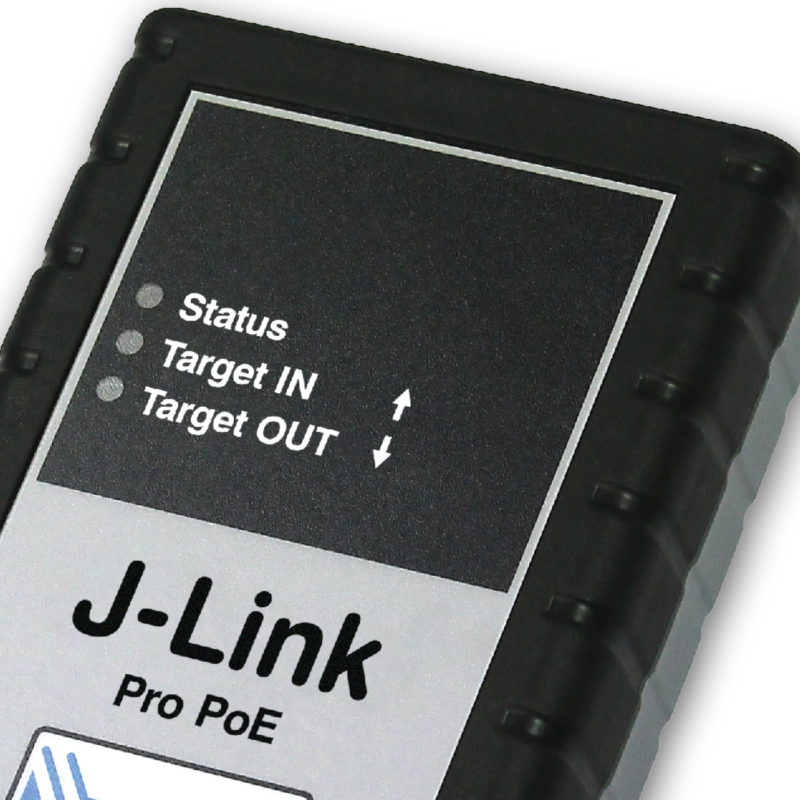

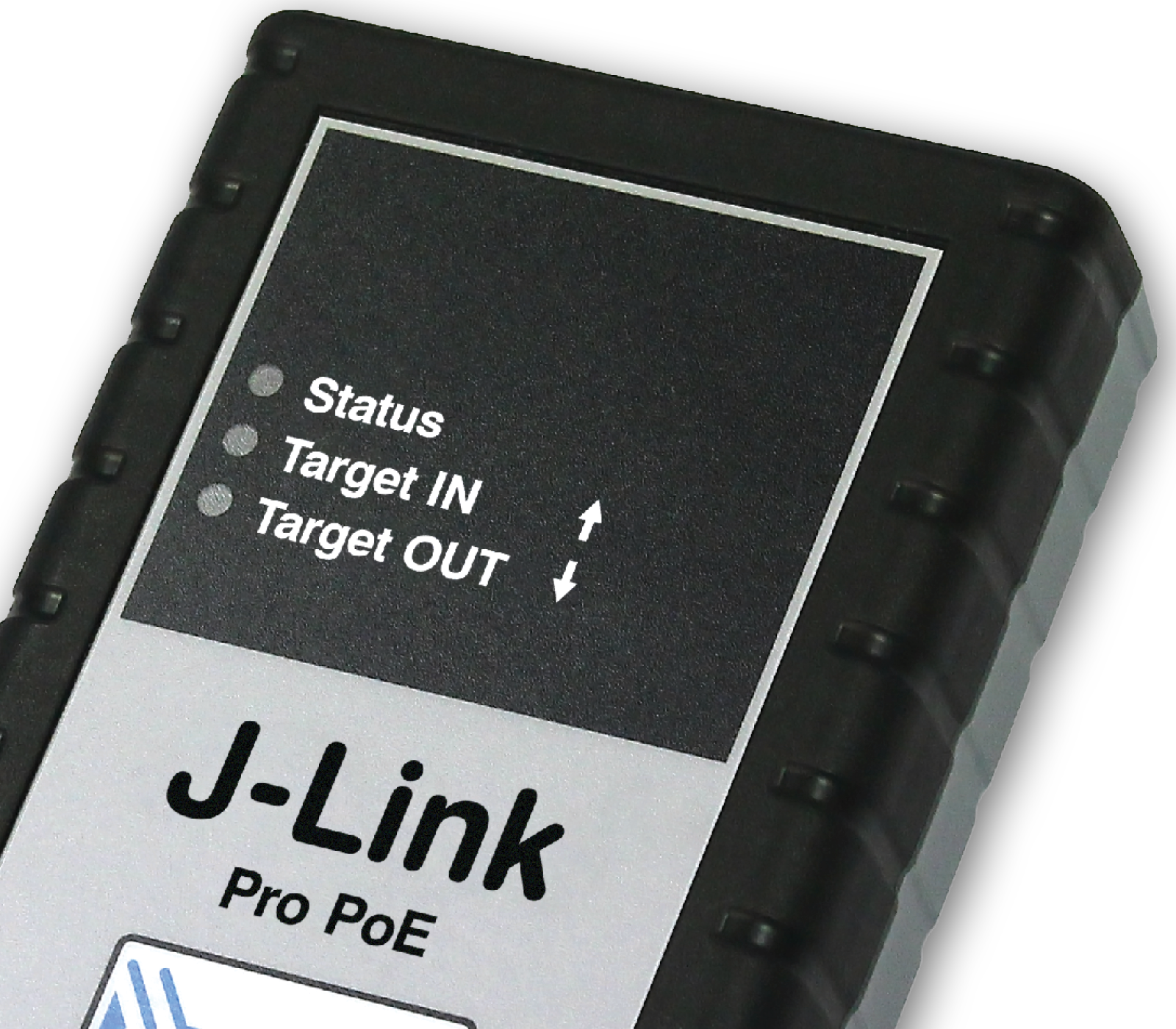

Get the J-Link Pro PoE, the specialized high-end debug probe for test farms

J-Link Pro PoE features a PoE-enabled Ethernet interface as an alternative to the USB connection, specifically to reduce the size of a cable harness in test farms. A USB port on the target side simplifies switching power of the target boards. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux, and macOS.

Further advantages
J-Link Pro PoE includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers.

J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.

Package content

J-Link Pro PoE debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product information, please visit segger.com.

Model	J-Link Pro PoE
Order number	SEGGER_8.12.28
Support options	Basic (12 months), Extended Coverage (+12 months), Extended Coverage (+24 months)
Supported targets	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051
Host interface	Ethernet, Ethernet-PoE, USB
Interface speed	High (4 MB/s)
Trace interface	ETB Trace
Software features	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Target Interface	cJTAG, FINE, ICSP, JTAG, Power via USB, SWD, SWO
