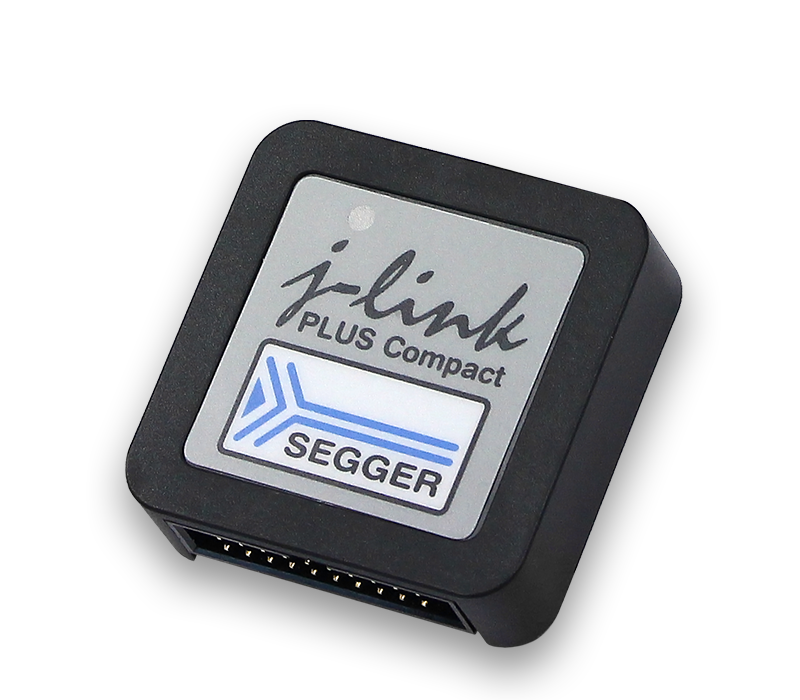

J-Link PLUS Compact
About this product
Get the J-Link PLUS Compact debug probe; a compact version of the J-Link PLUS.
Mounts securely & unobtrusively into development and end user equipment. Based on 32-bit RISC CPU, it communicates at high speed with supported target CPUs. Thanks to a small size with two mounting holes, it can be placed into existing equipment housings. Space can also be reserved for direct-to-PCB mounting.
J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.
More than 500,000 J-Links have been shipped so far, making this probably the most popular debug probe on the market for ARM cores and the de-facto standard.
Further advantages
The J-Link PLUS Compact has a built-in VCOM functionality and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It supports direct download into RAM and flash memory. It has a broad range of supported microcontrollers and CPUs.
Package content
- J-Link PLUS Compact debug probe
- USB cable
- .1" 20-pin ribbon cable (18 cm)
Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.
For additional product information, please visit segger.com.
| Model | J-Link PLUS Compact |
| Order number | SEGGER_8.19.28 |
| Support options | Basic (12 months), Extended Coverage (+12 months), Extended Coverage (+24 months) |
| Supported targets | ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051 |
| Host interface | USB |
| Interface speed | Standard (1 MB/s) |
| Trace interface | ETB Trace |
| Software features | Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints |
| Target Interface | cJTAG, FINE, ICSP, JTAG, SWD, SWO |
