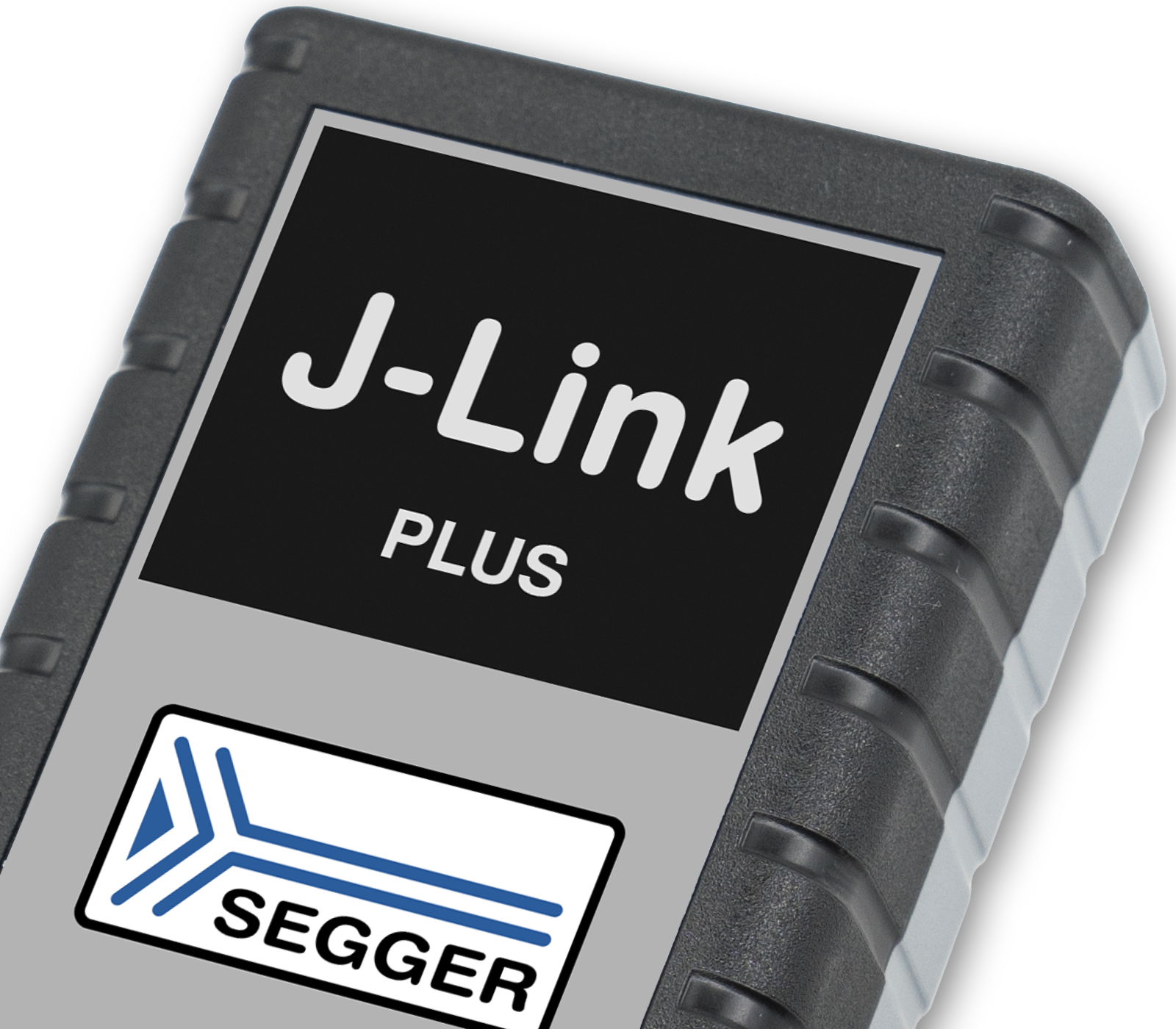

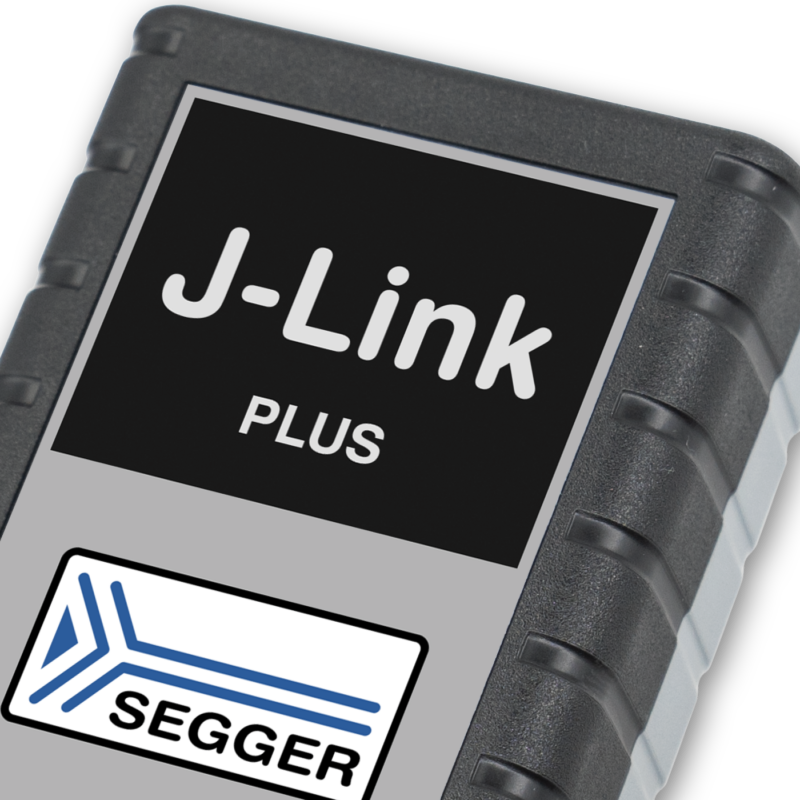

J-Link Plus Classic

SKU: SEGGER_8.08.28

excl. VAT

€ 771,98 incl. 21% VAT

In stock — Ships within 2-5 business days

Support options

Authorized Segger Partner

EU-wide shipping

VAT reverse charge for EU businesses

Expert technical support

About this product

Get the J-Link Plus, a high-speed JTAG/SWD debug probe with USB interface.

Based on a 32-bit RISC CPU, communicates at high speed with supported target CPUs. Supports a large number of CPU cores and microcontrollers.
All major IDEs including Eclipse & GDB-based IDEs support J-Link debug probes. So does SEGGER Embedded Studio. With 500,000 J-Links shipped so far, it is the most popular debug probe for ARM cores and the de-facto standard.

Further advantages
J-Link Plus has built-in VCOM functionality, with integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. Direct download into RAM & flash memory is also supported. It is available in two form factors: J-Link PLUS & J-Link Plus Compact (functions identical).

Package content

J-Link Plus debug probe
USB cable
.1" 20-pin ribbon cable (18 cm)

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.

For additional product infromation, please visit segger.com.

Model	J-Link Plus Classic
Order number	SEGGER_8.08.28
Support options	Basic (12 months), Extended Coverage (+12 months), Extended Coverage (+24 months)
Supported targets	ARM Cortex Cores, ARM legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051
Host interface	USB
Interface speed	Standard (1 MB/s)
Trace interface	ETB Trace
Software features	Flash Download, GDB Server, J-Flash / J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints
Target Interface	cJTAG, FINE, ICSP, JTAG, SWD, SWO
